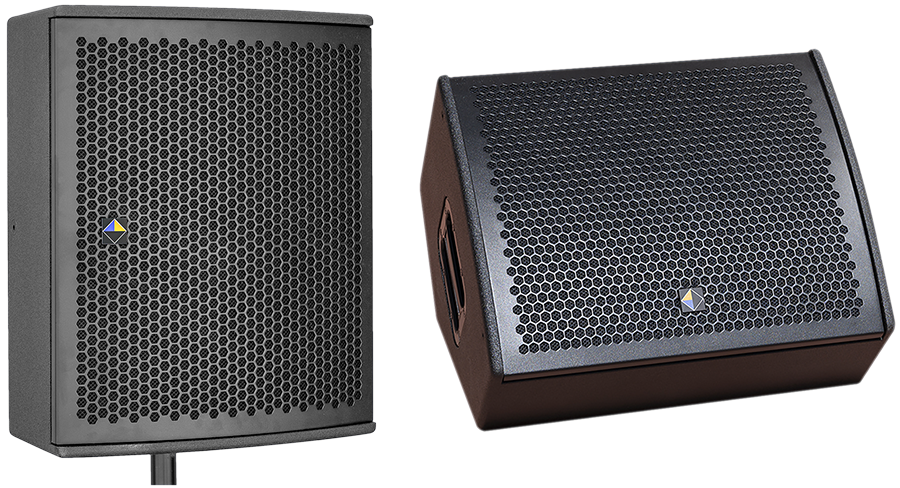

WEDGE Series – ME15WAX

High performance coaxial 15” active stage monitor

  • Custom components.
  • Self-powered floor monitor with 1 x 15” LF and 1 x 2.84” HF coaxial driver.
  • Floor monitor/PA position.
  • Low feedback level.
  • Excellent performance as a floor monitor.
  • Includes 800W + 200W Class D amplifier.
  • Light weight (23Kg).
  • Complete internal digital process (includes 4 userselectable presets) and Ethernet connection for updates and programming/control with ArmoníaPlus® System Manager.
  • Plate for standard tripod with two holes for 0° and 5° inclination.
  • Manufactured from 18 layers of Finnish birch.
  • Woods used complies with the FSC® program which guarantees the control of production and reforestation.
  • Finished with special Polyurea paint, waterproof and resistant to erosion and degradation.
  • Rugged construction of panels, assembled with tongue and groove technique and subsequent gluing and pressing.
  • Hexagonal punched front screen and high-strength epoxy finish, with special acoustic coating to protect the loudspeakers against dust and dirt.
  • MAGA ENGINEERING® 5-year limited warranty.
  • Frecuency Response: 42Hz – 20KHz (+/- 2dB in preset 4)
  • Maximum SPL Power: 132dB peak (1m)
  • Includes four single button user-definable presets:
    Preset 1: Full range
    Preset 2: Floor monitor
    Preset 3: Set to 100Hz for use with subwoofer
    Preset 4: Flat response
  • Horn: 60º, conical
  • Amplification: 800W @ 4Ω (15” LF driver) + 200W @ 16Ω (2.84” HF driver); amplifier with complete digital process and Ethernet control with the ArmoníaPlus® System Manager program
  • Bass Components: 1 x 15” Neodymium, AES 500W, 8Ω
  • Treble Components: 1 x 2,84” Neodymium, AES 90W, 16Ω
  • Front: 534 x 438mm
  • Front: 370mm
  • Net Weight: 23Kg
  • Connectors: 2 x Neutrik powerCON TRUE; 2 x XLR male and female; Etrhernet
